Overview
Structural steel and precast BIM modeling using Tekla Structures - warehouses, pipe racks, offshore jackets, bridges, and industrial buildings. Fabrication-ready drawings, connection details, and IFC coordination for reliable project execution.
Our Expertise
- Structural steel warehouses and industrial buildings
- Offshore jackets and pipe rack structures
- Connection design and fabrication drawings
- IFC-based coordination with MEP and piping
Key Benefits
- 50+ real-world project experience per skill area
- Experienced team led by Dr. Abhishek Bhagwat
- Fast turnaround with quality assurance
- Integrated support from concept to completion
Industries We Serve
Tools & Software
What We Offer
Core deliverables within Tekla Structures - from analysis and modeling through production-ready documentation.

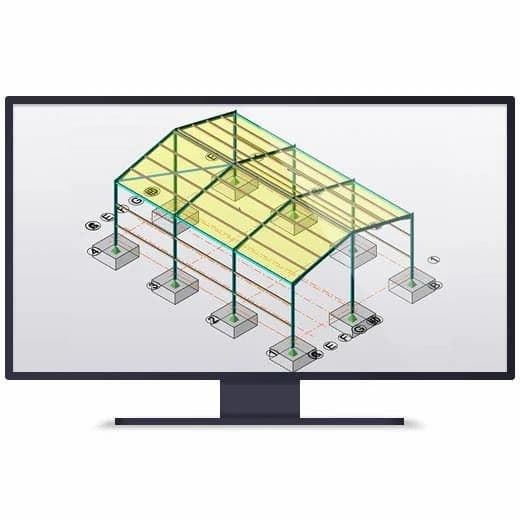

Tekla BIM · NC filesStructural Steel Modeling
Detailed Tekla models for warehouses, pipe racks, and industrial steel structures.

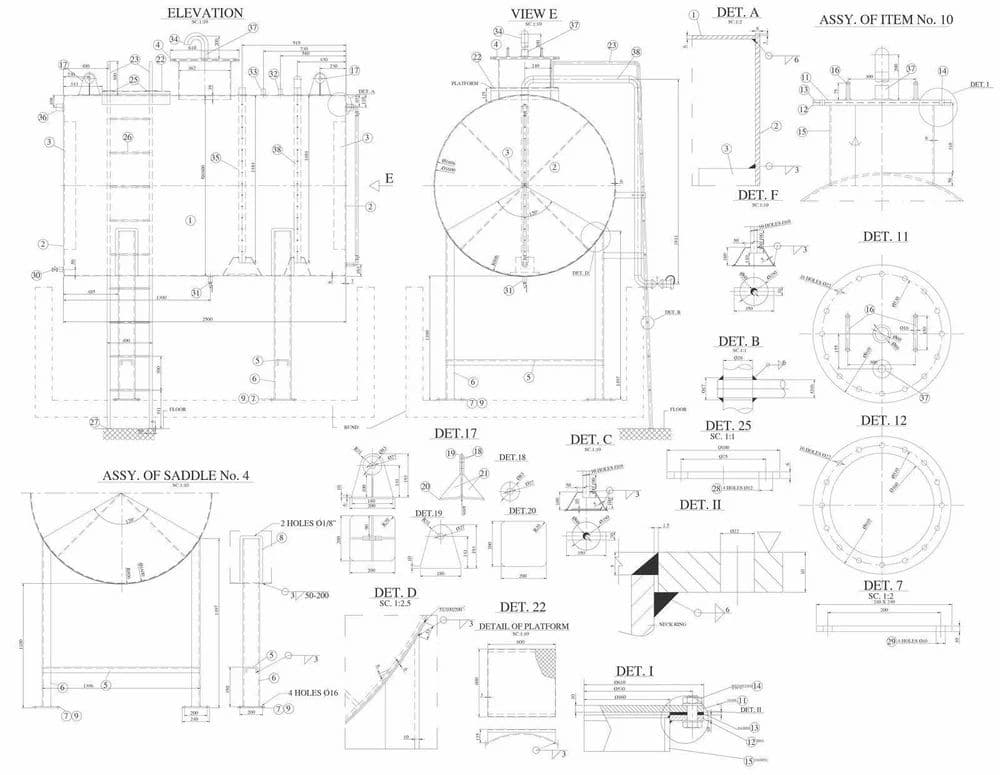

Shop drawings · GA plansConnection Detailing
Bolted and welded connection design with fabrication-ready shop drawings.

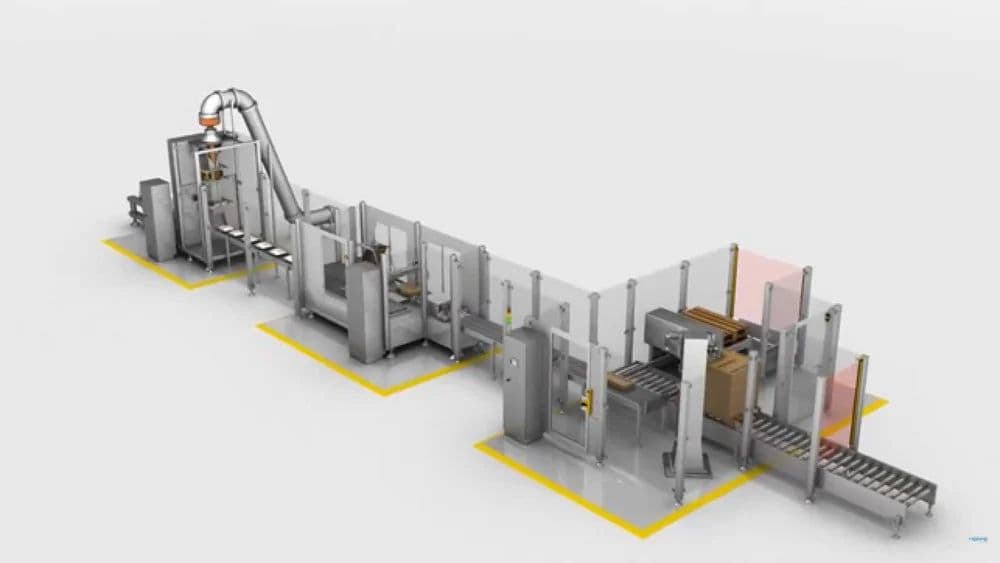

IFC · Clash reviewBIM Coordination
IFC export and clash detection for multi-discipline project coordination.
Real-World Projects
Explore 51+ delivered tekla structures engagements - from concept and analysis through production-ready engineering documentation.
Steel-framed industrial warehouse
Full Tekla model of 120×60 m portal-frame warehouse, connections, purlins, girts.
Multi-storey car park structure
Precast concrete deck and cast-in-place cores, rebar detailing in Tekla.
Oil refinery pipe rack
Modular 4-tier pipe rack, trunnion connections, thermal movement guides.
Offshore jacket structure
Tubular-joint jacket model for 60 m water depth, K- and X-bracing nodes.
Bridge steel superstructure
Plate girder and cross-frame model, camber diagram, splice connection details.
Petrochemical plant structure
Structural steel for compressor shelter, equipment pads, and access platforms.
High-rise commercial building
Composite steel-concrete 22-storey frame with Tekla IFC export for coordination.
Sports stadium roof structure
Long-span lattice roof trusses, tension ring and PTFE cladding rails.
Wind turbine tower
Hybrid steel-concrete tubular tower, anchor bolt arrangement, flange ring details.
Conveyor support gantry
Overland conveyor 1.8 km support gantry, knee-brace bent frames.
LNG storage tank outer shell
9% Ni steel inner tank and prestressed concrete outer shell model.
Nuclear reactor building structure
HDPE-lined RC containment shell with embedded steel liner plate.
